HyperLPR-Windows-Shared

# image url
lpr3 sample -src https://koss.iyong.com/swift/v1/iyong_public/iyong_2596631159095872/image/20190221/1550713902741045679.jpg

# image path
lpr3 sample -src images/test_img.jpg -det high

How to Use

# import opencv
import cv2
# import hyperlpr3
import hyperlpr3 as lpr3

# Instantiate object
catcher = lpr3.LicensePlateCatcher()
# load image
image = cv2.imread("images/test_img.jpg")
# print result
print(catcher(image))

Start the WebAPI service

# start server
lpr3 rest --port 8715 --host 0.0.0.0

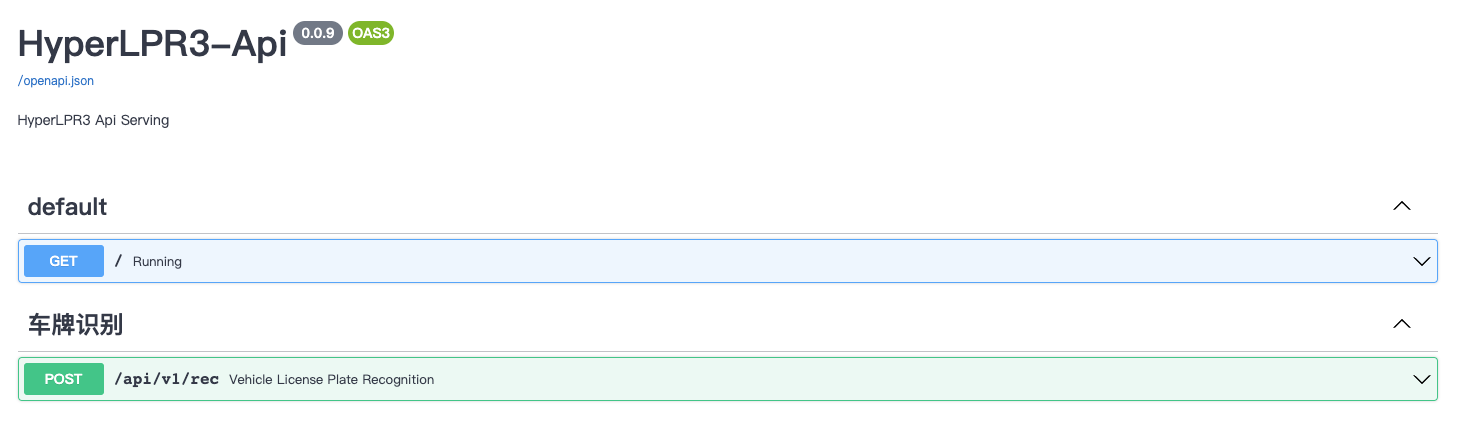

Path to open SwaggerUI after startup：http://localhost:8715/api/v1/docs View and test the online Identification API service:

Q&A

Q：Whether the accuracy of android in the project is consistent with that of apk-demo？

A：Please compile or download the Android shared library from the release and copy it to Prj-Android for testing。

Q：Source of training data for license plates？

A：Since the license plate data used for training involves legal privacy and other issues, it cannot be provided in this project. Open more big data sets CCPD registration dataset。

Q：Provision of training code？

A：The resources provide the old training code, and the training methods for HyperLPR3 will be sorted out and presented later。

Resources

Other Versions

TODO

Support for rapid deployment of WebApi services
Support multiple license plates and double layers
Support large Angle license plate
Lightweight recognition model

Specialty

720p faster, single core Intel 2.2G CPU (MaBook Pro 2015) average recognition time is less than 100ms
End-to-end license plate recognition does not require character segmentation
The recognition rate is high, and the accuracy of the entrance and exit scene is about 95%-97%
Support cross-platform compilation and rapid deployment

Matters Need Attention:

The C++ and Python implementations of this project are separate
When compiling C++ projects, OpenCV 4.0 and MNN 2.0 must be used, otherwise it will not compile
Android project compilation ndk as far as possible to use version 21

Python Dependency

opencv-python (>3.3)
onnxruntime (>1.8.1)
fastapi (0.92.0)
uvicorn (0.20.0)
loguru (0.6.0)
python-multipart
tqdm
requests

Cross-platform support

Platform

Linux: x86、Armv7、Armv8
MacOS: x86
Android: arm64-v8a、armeabi-v7a

Embedded Development Board

Rockchip: rv1109rv1126(RKNPU)

CPP Dependency

Opencv 4.0 above
MNN 2.0 above

C/C++ Compiling Dependencies

Compiling C/C++ projects requires the use of third-party dependency libraries. After downloading the library, unzip it, and put it into the root directory (the same level as CMakeLists.txt) by copying or soft linking.baidu drive code: 5duf

Linux/Mac Shared Library Compilation

Need to place or link dependencies in the project root (same level as CMakeLists.txt)

# execute the script
sh command/build_release_linux_share.sh

Compiled to the build/linux/install/hyperlpr3 dir，Which contains：

include - header file
lib - shared dir
resource - test-images and models dir

Copy the files you need into your project

Linux/Mac Compiling the Demo

You need to complete the compilation action of the previous step，And ensure that the compilation is successful and the compiled file is placed in the root directory: build/linux/install/hyperlpr3
Go to the Prj-Linux folder

# go to Prj-linux
cd Prj-Linux
# make build and enter
mkdir build && cd build
# Start compiling
cmake .. && make -j

The executable program is generated after compilation: PlateRecDemo，and Run the program

# first param models dir, second param image path
./PlateRecDemo ../hyperlpr3/resource/models/r2_mobile ../hyperlpr3/resource/images/test_img.jpg

Linux/Mac Quick Use SDK Code Example

// Load image
cv::Mat image = cv::imread(image_path);
// Create a ImageData
HLPR_ImageData data = {0};
data.data = image.ptr<uint8_t>(0);         // Setting the image data flow
data.width = image.cols;                   // Setting the image width
data.height = image.rows;                  // Setting the image height
data.format = STREAM_BGR;                  // Setting the current image encoding format
data.rotation = CAMERA_ROTATION_0;         // Setting the current image corner
// Create a Buffer
P_HLPR_DataBuffer buffer = HLPR_CreateDataBuffer(&data);

// Configure license plate recognition parameters
HLPR_ContextConfiguration configuration = {0};
configuration.models_path = model_path;         // Model folder path
configuration.max_num = 5;                      // Maximum number of license plates
configuration.det_level = DETECT_LEVEL_LOW;     // Level of detector
configuration.use_half = false;
configuration.nms_threshold = 0.5f;             // Non-maxima suppress the confidence threshold
configuration.rec_confidence_threshold = 0.5f;  // License plate number text threshold
configuration.box_conf_threshold = 0.30f;       // Detector threshold
configuration.threads = 1;
// Instantiating a Context
P_HLPR_Context ctx = HLPR_CreateContext(&configuration);
// Query the Context state
HREESULT ret = HLPR_ContextQueryStatus(ctx);
if (ret != HResultCode::Ok) {
    printf("create error.\n");
    return -1;
}
HLPR_PlateResultList results = {0};
// Execute LPR
HLPR_ContextUpdateStream(ctx, buffer, &results);

for (int i = 0; i < results.plate_size; ++i) {
	// Getting results
    std::string type;
    if (results.plates[i].type == HLPR_PlateType::PLATE_TYPE_UNKNOWN) {
        type = “Unknown";
    } else {
        type = TYPES[results.plates[i].type];
    }

    printf("<%d> %s, %s, %f\n", i + 1, type.c_str(),
           results.plates[i].code, results.plates[i].text_confidence);
}

// Release Buffer
HLPR_ReleaseDataBuffer(buffer);
// Release Context
HLPR_ReleaseContext(ctx);

Android: Compile the Shared Library

The first step is to install third-party dependencies

# execute the script
sh command/build_release_android_share.sh

Compiled to the: build/release_android/，Which contains：

arm64-v8a - 64bit shard library
armeabi-v7a - 32bit shard library

After compiling，Copyarm64-v8aandarmeabi-v7a dirs to Prj-Android/hyperlpr3/libs，And compile the Prj-Android project to use.

License Plate Type is Supported(Chinese)

支持

单行蓝牌
单行黄牌
新能源车牌
教练车牌

有限支持

白色警用车牌
使馆/港澳车牌
双层黄牌
武警车牌

待支持

民航车牌
双层武警
双层军牌
双层农用车牌
双层个性化车牌
License plates from more countries

Note:Due to some imbalanced samples during training, some special license plates have low recognition rates, such as (Embassy/Hong Kong and Macao license plates), which will be improved in the subsequent versions.

Demo APP Install

Android APP：Scan Code

Help

HyperInspire QQ Group: 529385694

README.md Unescape Escape

HyperLPR3 - High Performance License Plate Recognition Framework.

Quick installation

support：python3, Windows, Mac, Linux, Raspberry Pi。

720p cpu real-time (st on MBP r15 2.2GHz haswell).

Quick Test
